I’m designing a new toolhead for my heavily modified Ender 5. At the moment it uses a MicroSwiss all metal hotend with dual blower fans, a tiny 404010 fan on the heatbreak (barely enough) and on top of it an Orbiter 1.5 extruder.
It has been working quite well but I want to get something with higher flow capabilities to push print speeds. Perhaps even dual Orbiter extruders and two hotends.
After I’m done modifying the Ender5 it will have a 314x314 bed which should allow for dual hotends without losing too much space.
Ideally I end up with a new toolhead so that the old one may be kept as backup.
I have been eyeing the Orbiter V2 with the Phaetus Rapido UHF but I’m open to suggestions. What have you been using and do you have any advice? There are a ton of options.

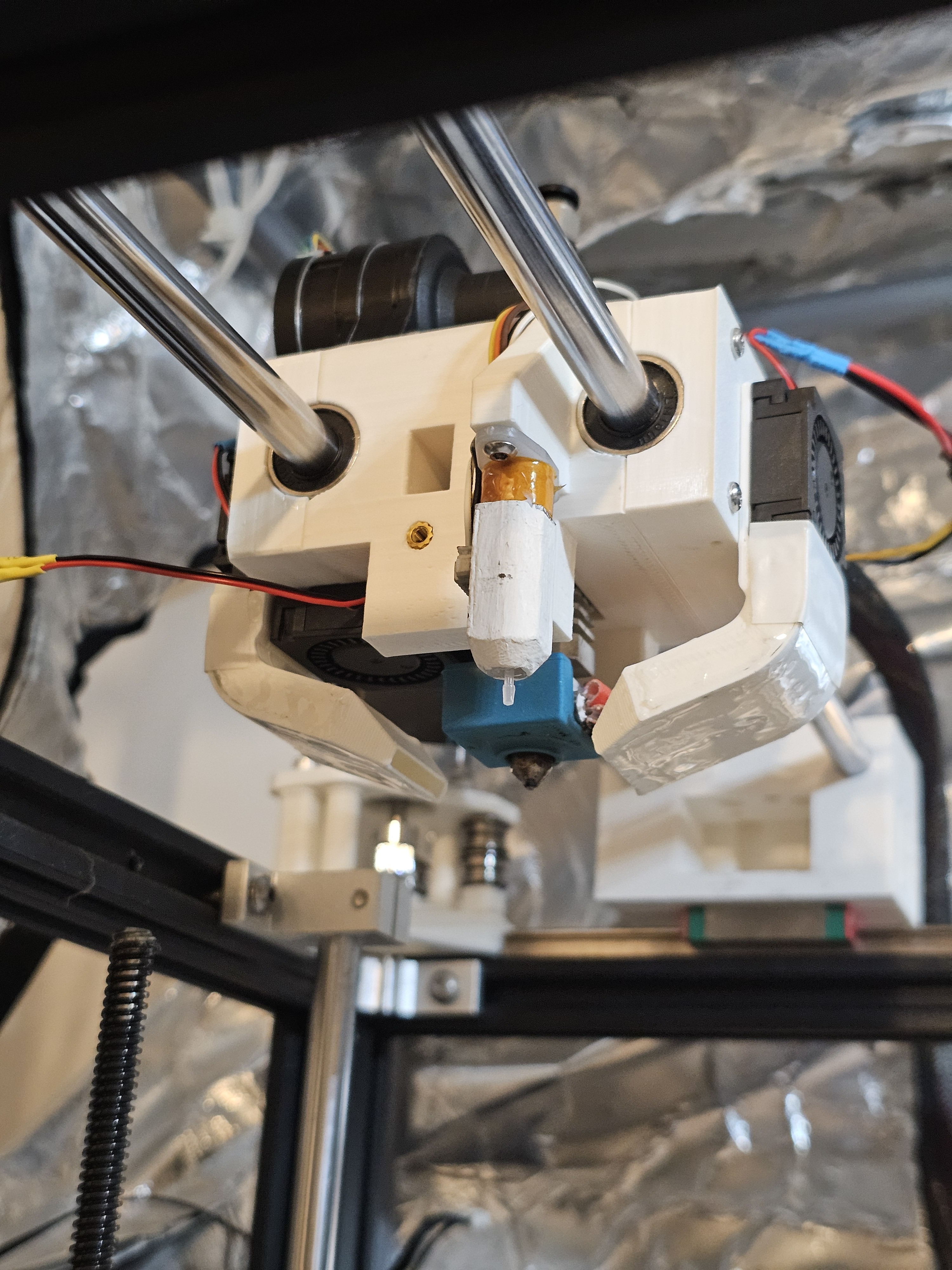

I put an E3D Toolchanger that I got for cheap from Aliexpress on mine, with 2x E3D v6 and Trianglelab TBG-Litle direct drive extruders. The TBG-Lite is amazing. It’s got so much grip on the filament, that I didn’t even end up setting up a TPU profile at all, I just used a PLA profile for it.
I ended up switching over to a Snapmaker U1 earlier this year, and the only thing I miss are these TBG-Lites.
